Kafka SASL Authentication: Usage & Best Practices

Securing Apache Kafka clusters is critical for production deployments. SASL (Simple Authentication and Security Layer) provides a robust authentication framework that supports multiple mechanisms. This article explores Kafka SASL authentication, implementation patterns in Go, and production best practices.

Understanding SASL in Kafka

SASL is a framework for adding authentication support to connection-based protocols. Kafka supports multiple SASL mechanisms, each designed for different security requirements and operational contexts.

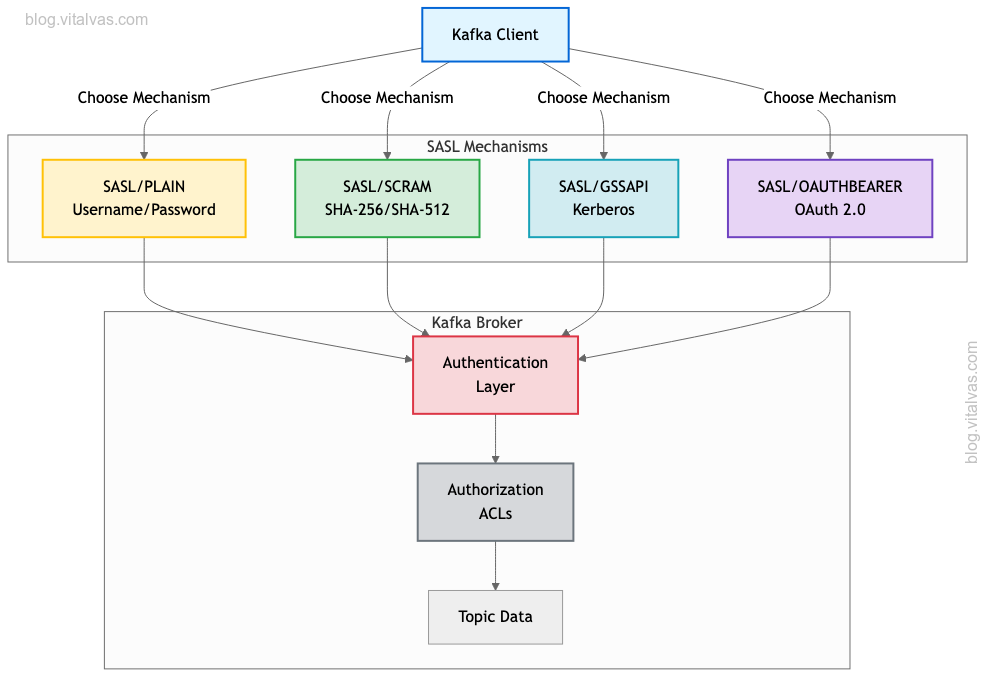

Supported SASL Mechanisms

Kafka supports four primary SASL mechanisms:

SASL/PLAIN: Simple username/password authentication
SASL/SCRAM: Salted Challenge Response Authentication Mechanism
SASL/GSSAPI: Kerberos authentication
SASL/OAUTHBEARER: OAuth 2.0 bearer token authentication

SASL/PLAIN Authentication

Overview

SASL/PLAIN is the simplest mechanism, using username and password credentials transmitted over the connection.

Broker Configuration

# server.properties
listeners=SASL_PLAINTEXT://0.0.0.0:9092
advertised.listeners=SASL_PLAINTEXT://kafka1.example.com:9092

security.inter.broker.protocol=SASL_PLAINTEXT
sasl.mechanism.inter.broker.protocol=PLAIN
sasl.enabled.mechanisms=PLAIN

# JAAS configuration
listener.name.sasl_plaintext.plain.sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required \
    username="admin" \
    password="admin-secret" \
    user_admin="admin-secret" \
    user_producer="producer-secret" \
    user_consumer="consumer-secret";

Client Implementation in Go

package main

import (
    "log"

    "github.com/IBM/sarama"
)

func createSASLPlainConfig(username, password string) *sarama.Config {
    config := sarama.NewConfig()
    config.Version = sarama.V3_5_0_0

    // SASL configuration
    config.Net.SASL.Enable = true
    config.Net.SASL.Mechanism = sarama.SASLTypePlaintext
    config.Net.SASL.User = username
    config.Net.SASL.Password = password

    return config
}

func main() {
    brokers := []string{"kafka1.example.com:9092"}

    config := createSASLPlainConfig("producer", "producer-secret")
    config.Producer.Return.Successes = true

    producer, err := sarama.NewSyncProducer(brokers, config)
    if err != nil {
        log.Fatalf("Failed to create producer: %v", err)
    }
    defer producer.Close()

    msg := &sarama.ProducerMessage{
        Topic: "test-topic",
        Value: sarama.StringEncoder("Hello, Kafka with SASL/PLAIN!"),
    }

    partition, offset, err := producer.SendMessage(msg)
    if err != nil {
        log.Fatalf("Failed to send message: %v", err)
    }

    log.Printf("Message sent to partition %d at offset %d", partition, offset)
}

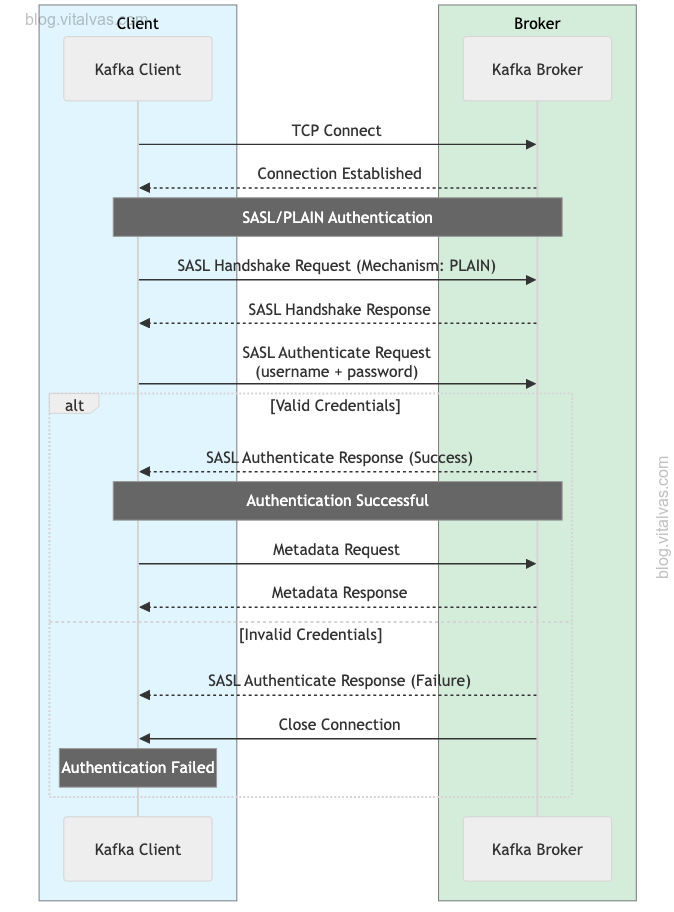

SASL/PLAIN Authentication Flow

SASL/SCRAM Authentication

Overview

SCRAM (Salted Challenge Response Authentication Mechanism) is more secure than PLAIN, using cryptographic hashing to avoid transmitting passwords. Kafka supports SCRAM-SHA-256 and SCRAM-SHA-512.

Advantages Over SASL/PLAIN

No Password Transmission: Only hashed values are sent
Salt Protection: Prevents rainbow table attacks
Mutual Authentication: Both client and server prove identity
Replay Attack Protection: Uses nonces and challenge-response

Creating SCRAM Credentials

# Create SCRAM-SHA-256 credentials
kafka-configs --bootstrap-server kafka1.example.com:9092 \
  --alter \
  --add-config 'SCRAM-SHA-256=[password=producer-secret]' \
  --entity-type users \
  --entity-name producer

# Create SCRAM-SHA-512 credentials
kafka-configs --bootstrap-server kafka1.example.com:9092 \
  --alter \
  --add-config 'SCRAM-SHA-512=[password=consumer-secret]' \
  --entity-type users \
  --entity-name consumer

# List SCRAM credentials
kafka-configs --bootstrap-server kafka1.example.com:9092 \
  --describe \
  --entity-type users \
  --entity-name producer

Broker Configuration

# server.properties
listeners=SASL_PLAINTEXT://0.0.0.0:9092
advertised.listeners=SASL_PLAINTEXT://kafka1.example.com:9092

security.inter.broker.protocol=SASL_PLAINTEXT
sasl.mechanism.inter.broker.protocol=SCRAM-SHA-512
sasl.enabled.mechanisms=SCRAM-SHA-256,SCRAM-SHA-512

# JAAS configuration for inter-broker
listener.name.sasl_plaintext.scram-sha-512.sasl.jaas.config=org.apache.kafka.common.security.scram.ScramLoginModule required \
    username="admin" \
    password="admin-secret";

Client Implementation with SCRAM

package main

import (
    "log"

    "github.com/IBM/sarama"
)

func createSASLSCRAMConfig(username, password string, mechanism sarama.SASLMechanism) *sarama.Config {
    config := sarama.NewConfig()
    config.Version = sarama.V3_5_0_0

    // SASL configuration
    config.Net.SASL.Enable = true
    config.Net.SASL.Mechanism = mechanism
    config.Net.SASL.User = username
    config.Net.SASL.Password = password

    // SCRAM client generator
    switch mechanism {
    case sarama.SASLTypeSCRAMSHA256:
        config.Net.SASL.SCRAMClientGeneratorFunc = func() sarama.SCRAMClient {
            return &XDGSCRAMClient{HashGeneratorFcn: SHA256}
        }
    case sarama.SASLTypeSCRAMSHA512:
        config.Net.SASL.SCRAMClientGeneratorFunc = func() sarama.SCRAMClient {
            return &XDGSCRAMClient{HashGeneratorFcn: SHA512}
        }
    }

    return config
}

// SCRAM client implementation
import (
    "crypto/sha256"
    "crypto/sha512"
    "hash"
)

type HashGeneratorFcn func() hash.Hash

type XDGSCRAMClient struct {
    *scram.Client
    *scram.ClientConversation
    scram.HashGeneratorFcn
}

var SHA256 scram.HashGeneratorFcn = sha256.New
var SHA512 scram.HashGeneratorFcn = sha512.New

func (x *XDGSCRAMClient) Begin(userName, password, authzID string) (err error) {
    x.Client, err = x.HashGeneratorFcn.NewClient(userName, password, authzID)
    if err != nil {
        return err
    }
    x.ClientConversation = x.Client.NewConversation()
    return nil
}

func (x *XDGSCRAMClient) Step(challenge string) (response string, err error) {
    response, err = x.ClientConversation.Step(challenge)
    return
}

func (x *XDGSCRAMClient) Done() bool {
    return x.ClientConversation.Done()
}

func main() {
    brokers := []string{"kafka1.example.com:9092"}

    // Use SCRAM-SHA-512
    config := createSASLSCRAMConfig("producer", "producer-secret", sarama.SASLTypeSCRAMSHA512)
    config.Producer.Return.Successes = true

    producer, err := sarama.NewSyncProducer(brokers, config)
    if err != nil {
        log.Fatalf("Failed to create producer: %v", err)
    }
    defer producer.Close()

    msg := &sarama.ProducerMessage{
        Topic: "test-topic",
        Value: sarama.StringEncoder("Hello, Kafka with SASL/SCRAM!"),
    }

    partition, offset, err := producer.SendMessage(msg)
    if err != nil {
        log.Fatalf("Failed to send message: %v", err)
    }

    log.Printf("Message sent to partition %d at offset %d", partition, offset)
}

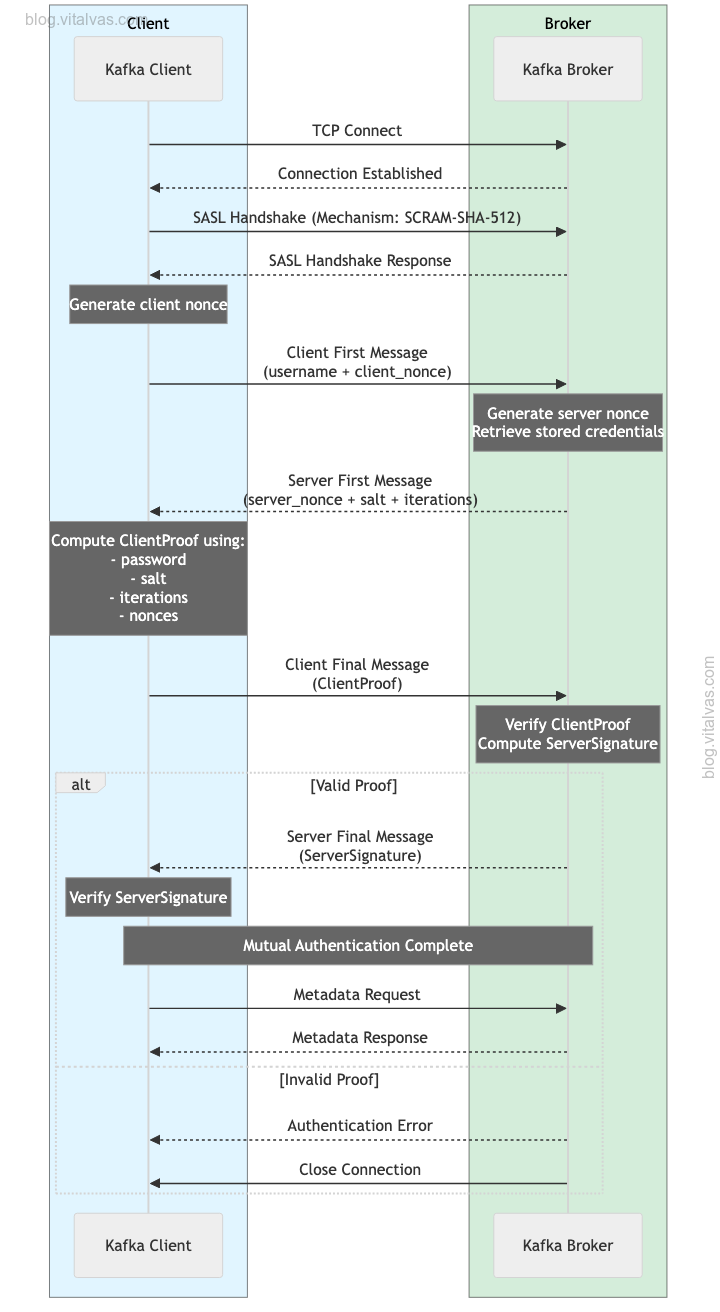

SASL/SCRAM Authentication Flow

Consumer Group with SASL

package main

import (
    "context"
    "log"
    "os"
    "os/signal"
    "sync"
    "syscall"

    "github.com/IBM/sarama"
)

type ConsumerGroupHandler struct{}

func (h ConsumerGroupHandler) Setup(sarama.ConsumerGroupSession) error {
    return nil
}

func (h ConsumerGroupHandler) Cleanup(sarama.ConsumerGroupSession) error {
    return nil
}

func (h ConsumerGroupHandler) ConsumeClaim(session sarama.ConsumerGroupSession, claim sarama.ConsumerGroupClaim) error {
    for message := range claim.Messages() {
        log.Printf("Message received: topic=%s partition=%d offset=%d value=%s",
            message.Topic, message.Partition, message.Offset, string(message.Value))
        session.MarkMessage(message, "")
    }
    return nil
}

func main() {
    brokers := []string{"kafka1.example.com:9092"}

    config := sarama.NewConfig()
    config.Version = sarama.V3_5_0_0

    // SASL/SCRAM-SHA-512 configuration
    config.Net.SASL.Enable = true
    config.Net.SASL.Mechanism = sarama.SASLTypeSCRAMSHA512
    config.Net.SASL.User = "consumer"
    config.Net.SASL.Password = "consumer-secret"
    config.Net.SASL.SCRAMClientGeneratorFunc = func() sarama.SCRAMClient {
        return &XDGSCRAMClient{HashGeneratorFcn: SHA512}
    }

    // Consumer configuration
    config.Consumer.Group.Rebalance.Strategy = sarama.NewBalanceStrategyRoundRobin()
    config.Consumer.Offsets.Initial = sarama.OffsetNewest

    group, err := sarama.NewConsumerGroup(brokers, "my-consumer-group", config)
    if err != nil {
        log.Fatalf("Failed to create consumer group: %v", err)
    }
    defer group.Close()

    ctx, cancel := context.WithCancel(context.Background())

    wg := &sync.WaitGroup{}
    wg.Add(1)
    go func() {
        defer wg.Done()
        for {
            topics := []string{"test-topic"}
            handler := ConsumerGroupHandler{}

            err := group.Consume(ctx, topics, handler)
            if err != nil {
                log.Printf("Error from consumer: %v", err)
            }

            if ctx.Err() != nil {
                return
            }
        }
    }()

    sigterm := make(chan os.Signal, 1)
    signal.Notify(sigterm, syscall.SIGINT, syscall.SIGTERM)
    <-sigterm

    cancel()
    wg.Wait()

    log.Println("Consumer group closed")
}

SASL with KRaft Mode

KRaft (Kafka Raft) eliminates ZooKeeper dependency. As of Kafka 4.0, ZooKeeper mode is deprecated. SASL authentication in KRaft mode requires a dedicated CONTROLLER listener for inter-broker communication and stores SCRAM credentials in the metadata log.

Key Configuration Differences

# server.properties for KRaft mode
process.roles=broker,controller
node.id=1
controller.quorum.voters=1@kafka1.internal:9094,2@kafka2.internal:9094,3@kafka3.internal:9094

# Two listeners: client (SASL_PLAINTEXT) and controller (CONTROLLER)
listeners=SASL_PLAINTEXT://0.0.0.0:9092,CONTROLLER://0.0.0.0:9094
advertised.listeners=SASL_PLAINTEXT://kafka1.example.com:9092
listener.security.protocol.map=SASL_PLAINTEXT:SASL_PLAINTEXT,CONTROLLER:SASL_PLAINTEXT

# Client authentication: SCRAM-SHA-512
sasl.enabled.mechanisms=SCRAM-SHA-512
listener.name.sasl_plaintext.scram-sha-512.sasl.jaas.config=org.apache.kafka.common.security.scram.ScramLoginModule required \
    username="admin" \
    password="admin-secret";

# Controller authentication: PLAIN (internal only)
listener.name.controller.sasl.enabled.mechanisms=PLAIN
listener.name.controller.plain.sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required \
    username="controller-user-1" \
    password="controller-secret" \
    user_controller-user-1="controller-secret" \
    user_controller-user-2="controller-secret" \
    user_controller-user-3="controller-secret";

Bootstrap Process

Create SCRAM credentials after cluster startup:

# Format and start cluster
KAFKA_CLUSTER_ID="$(bin/kafka-storage.sh random-uuid)"
bin/kafka-storage.sh format -t $KAFKA_CLUSTER_ID -c config/server.properties
bin/kafka-server-start.sh config/server.properties

# Create SCRAM credentials
bin/kafka-configs.sh --bootstrap-server kafka1.example.com:9092 \
  --command-config admin.properties \
  --alter \
  --add-config 'SCRAM-SHA-512=[password=producer-secret]' \
  --entity-type users \
  --entity-name producer

Key Points:

SCRAM credentials stored in metadata log, not ZooKeeper
Controllers use SASL/PLAIN on internal listener
Clients use SASL/SCRAM on public listener
Client configuration unchanged from ZooKeeper mode

Security Comparison

Feature	SASL/PLAIN	SASL/SCRAM	SASL/GSSAPI	SASL/OAUTHBEARER
Complexity	Low	Medium	High	High
Password Storage	Plaintext (broker)	Hashed (broker)	KDC	Token service
Password Transmission	Plaintext	Hashed	Encrypted	Token
Setup Difficulty	Easy	Easy	Complex	Medium
Production Ready	Yes	Yes	Yes	Yes
Best For	Development	Production	Enterprise	Microservices
Credential Rotation	Manual	Manual	Automatic	Automatic
Mutual Auth	No	Yes	Yes	Yes

Production Best Practices

1. Implement Credential Management

package credentials

import (
    "fmt"
    "os"
)

type KafkaCredentials struct {
    Username string
    Password string
}

func LoadFromEnvironment() (*KafkaCredentials, error) {
    username := os.Getenv("KAFKA_SASL_USERNAME")
    password := os.Getenv("KAFKA_SASL_PASSWORD")

    if username == "" || password == "" {
        return nil, fmt.Errorf("credentials not found in environment")
    }

    return &KafkaCredentials{
        Username: username,
        Password: password,
    }, nil
}

// Integration with secret management systems
func LoadFromVault(vaultAddr, secretPath string) (*KafkaCredentials, error) {
    // Implementation for HashiCorp Vault
    // or other secret management systems
    return nil, nil
}

2. Connection Error Handling

func createProducerWithRetry(brokers []string, config *sarama.Config, maxRetries int) (sarama.SyncProducer, error) {
    var producer sarama.SyncProducer
    var err error

    for i := 0; i < maxRetries; i++ {
        producer, err = sarama.NewSyncProducer(brokers, config)
        if err == nil {
            return producer, nil
        }

        log.Printf("Failed to create producer (attempt %d/%d): %v", i+1, maxRetries, err)

        if isAuthenticationError(err) {
            return nil, fmt.Errorf("authentication failed: %w", err)
        }

        time.Sleep(time.Second * time.Duration(i+1))
    }

    return nil, fmt.Errorf("failed after %d attempts: %w", maxRetries, err)
}

func isAuthenticationError(err error) bool {
    if err == nil {
        return false
    }

    errStr := err.Error()
    return strings.Contains(errStr, "authentication") ||
           strings.Contains(errStr, "SASL") ||
           strings.Contains(errStr, "credentials")
}

3. Credential Rotation Strategy

type CredentialRotator struct {
    currentCreds  *KafkaCredentials
    producer      sarama.SyncProducer
    config        *sarama.Config
    brokers       []string
    mu            sync.RWMutex
}

func (r *CredentialRotator) RotateCredentials(newCreds *KafkaCredentials) error {
    r.mu.Lock()
    defer r.mu.Unlock()

    // Create new configuration with new credentials
    newConfig := r.config
    newConfig.Net.SASL.User = newCreds.Username
    newConfig.Net.SASL.Password = newCreds.Password

    // Create new producer
    newProducer, err := sarama.NewSyncProducer(r.brokers, newConfig)
    if err != nil {
        return fmt.Errorf("failed to create producer with new credentials: %w", err)
    }

    // Close old producer
    oldProducer := r.producer
    r.producer = newProducer
    r.currentCreds = newCreds

    if oldProducer != nil {
        oldProducer.Close()
    }

    log.Println("Credentials rotated successfully")
    return nil
}

Troubleshooting SASL Issues

Common Errors and Solutions

1. Authentication Failed

Error: kafka: client has run out of available brokers
Cause: Invalid credentials or SASL mechanism mismatch

Solution:

# Verify credentials exist
kafka-configs --bootstrap-server kafka1.example.com:9092 \
  --describe \
  --entity-type users \
  --entity-name producer

# Check broker logs
tail -f /var/log/kafka/server.log | grep -i sasl

2. SCRAM Client Not Configured

Error: kafka: unable to authenticate: invalid response
Cause: Missing SCRAM client generator function

Solution:

config.Net.SASL.SCRAMClientGeneratorFunc = func() sarama.SCRAMClient {
    return &XDGSCRAMClient{HashGeneratorFcn: SHA512}
}

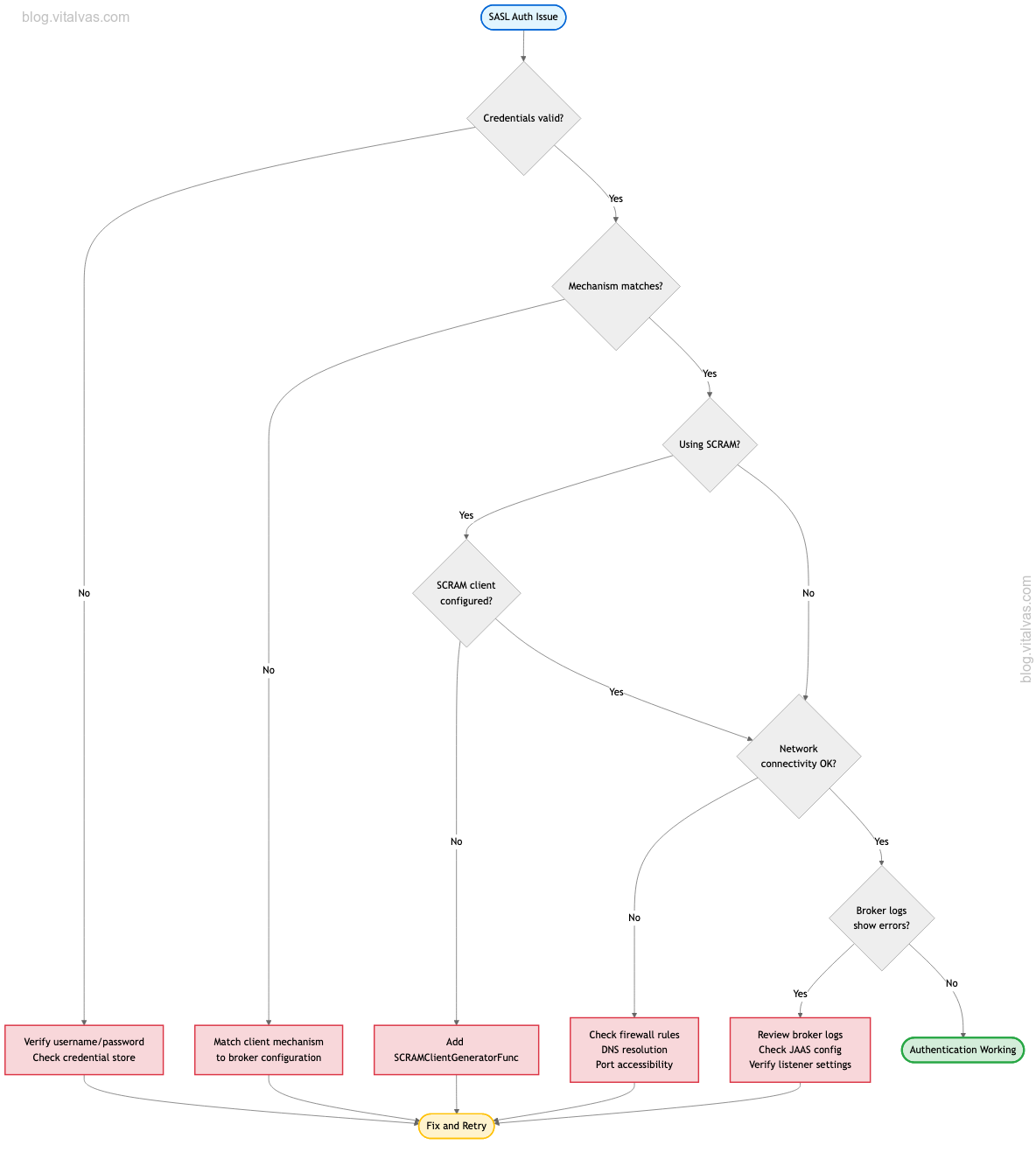

Debugging Checklist

Testing SASL Configuration

package main

import (
    "fmt"
    "log"
    "time"

    "github.com/IBM/sarama"
)

func testSASLConnection(brokers []string, config *sarama.Config) error {
    start := time.Now()

    // Test client connection
    client, err := sarama.NewClient(brokers, config)
    if err != nil {
        return fmt.Errorf("failed to create client: %w", err)
    }
    defer client.Close()

    authDuration := time.Since(start)
    log.Printf("Authentication successful in %v", authDuration)

    // Test broker connectivity
    brokerList := client.Brokers()
    log.Printf("Discovered %d brokers", len(brokerList))

    for _, broker := range brokerList {
        err := broker.Open(config)
        if err != nil {
            return fmt.Errorf("failed to connect to broker %d: %w", broker.ID(), err)
        }
        log.Printf("Connected to broker %d at %s", broker.ID(), broker.Addr())
        broker.Close()
    }

    // Test metadata request
    topics, err := client.Topics()
    if err != nil {
        return fmt.Errorf("failed to fetch topics: %w", err)
    }
    log.Printf("Discovered %d topics", len(topics))

    return nil
}

func main() {
    brokers := []string{"kafka1.example.com:9092"}

    config := createSASLSCRAMConfig("test-user", "test-password", sarama.SASLTypeSCRAMSHA512)

    if err := testSASLConnection(brokers, config); err != nil {
        log.Fatalf("Connection test failed: %v", err)
    }

    log.Println("All SASL connection tests passed")
}

Conclusion

SASL authentication is essential for securing Kafka clusters in production environments. Key takeaways:

Choosing a Mechanism:

Development: SASL/PLAIN for simplicity
Production: SASL/SCRAM-SHA-512 for security without external dependencies
Enterprise: SASL/GSSAPI for Kerberos integration
Microservices: SASL/OAUTHBEARER for OAuth 2.0 integration

Security Requirements:

Use SCRAM over PLAIN for production deployments
Implement proper credential management and rotation
Secure network communication between clients and brokers

Best Practices:

Store credentials securely (environment variables, secret management systems)
Implement retry logic with proper error handling
Test SASL configuration thoroughly before production deployment
Maintain separate credentials for different services and roles
Regularly rotate credentials following security policies

Common Pitfalls to Avoid:

Hardcoding credentials in application code
Missing SCRAM client configuration in Go applications
Not implementing proper error handling for auth failures
Sharing credentials across multiple services
Using weak passwords for SASL/PLAIN

With proper implementation and adherence to best practices, SASL authentication provides robust security for Kafka deployments while maintaining operational flexibility and performance.
