How Kafka Bootstrap Connection Works

Understanding how Kafka clients connect to a cluster is fundamental for proper deployment and troubleshooting. The bootstrap connection process is often misunderstood, leading to connectivity issues in production. This article explains the mechanics of Kafka’s two-phase connection process and its implications.

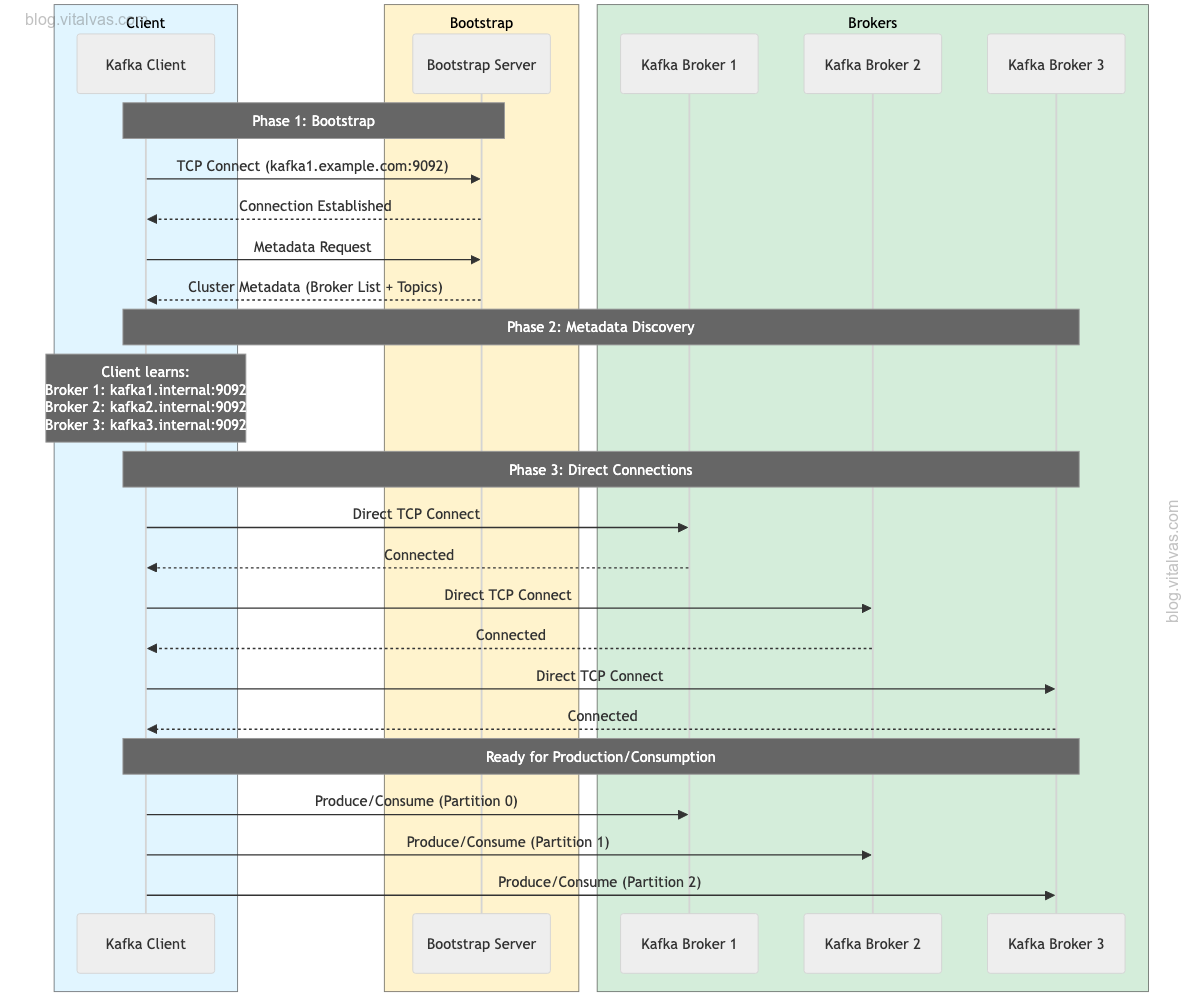

The Two-Phase Connection Process

Kafka uses a two-phase discovery mechanism that distinguishes it from simpler client-server architectures:

1. Bootstrap Phase: Initial connection using bootstrap servers
2. Metadata Discovery Phase: Learning the full cluster topology
3. Direct Connection Phase: Connecting directly to partition leaders

This design enables horizontal scalability and high availability but requires careful network configuration.

sequenceDiagram
    participant C as Kafka Client
    participant B as Bootstrap Server
    participant K1 as Kafka Broker 1
    participant K2 as Kafka Broker 2
    participant K3 as Kafka Broker 3

    Note over C,B: Phase 1: Bootstrap
    C->>B: TCP Connect (kafka1.example.com:9092)
    B-->>C: Connection Established
    C->>B: Metadata Request
    B-->>C: Cluster Metadata (Broker List + Topics)

    Note over C,K3: Phase 2: Metadata Discovery
    Note over C: Client learns:<br/>Broker 1: kafka1.internal:9092<br/>Broker 2: kafka2.internal:9092<br/>Broker 3: kafka3.internal:9092

    Note over C,K3: Phase 3: Direct Connections
    C->>K1: Direct TCP Connect
    K1-->>C: Connected
    C->>K2: Direct TCP Connect
    K2-->>C: Connected
    C->>K3: Direct TCP Connect
    K3-->>C: Connected

    Note over C,K3: Ready for Production/Consumption
    C->>K1: Produce/Consume (Partition 0)
    C->>K2: Produce/Consume (Partition 1)
    C->>K3: Produce/Consume (Partition 2)

    box rgb(225, 245, 255) Client
    participant C
    end
    box rgb(255, 243, 205) Bootstrap
    participant B
    end
    box rgb(212, 237, 218) Brokers
    participant K1
    participant K2
    participant K3
    end

Phase 1: Bootstrap Connection

What Are Bootstrap Servers?

Bootstrap servers are the initial contact points for Kafka clients. They’re specified in the client configuration:

import "github.com/IBM/sarama"

config := sarama.NewConfig()
config.Version = sarama.V3_5_0_0

brokers := []string{
    "kafka1.example.com:9092",
    "kafka2.example.com:9092",
    "kafka3.example.com:9092",
}

client, err := sarama.NewClient(brokers, config)
if err != nil {
    log.Fatal(err)
}
defer client.Close()

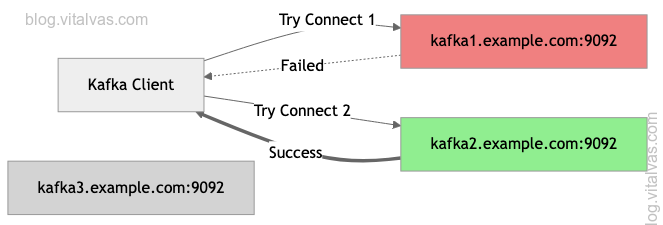

Bootstrap Connection Process

1. Client attempts to connect to the first bootstrap server
2. If connection fails, tries the next server in the list
3. Continues until successful connection or all servers are exhausted
4. Only ONE successful connection is needed

Important: You don’t need to list all brokers as bootstrap servers. A single reachable broker is sufficient, though multiple are recommended for redundancy.

graph LR
    C[Kafka Client]
    B1[kafka1.example.com:9092]
    B2[kafka2.example.com:9092]
    B3[kafka3.example.com:9092]

    C -->|Try Connect 1| B1
    B1 -.->|Failed| C
    C -->|Try Connect 2| B2
    B2 ==>|Success| C

    style B1 fill:lightcoral
    style B2 fill:lightgreen
    style B3 fill:lightgray

Bootstrap Server Response

When a client connects to a bootstrap server, it sends a Metadata request. The broker responds with:

Cluster Metadata Response:
- Cluster ID
- Controller ID
- Broker List:
  - Broker ID: 1
    Host: kafka1.internal.example.com
    Port: 9092
  - Broker ID: 2
    Host: kafka2.internal.example.com
    Port: 9092
  - Broker ID: 3
    Host: kafka3.internal.example.com
    Port: 9092
- Topic Metadata:
  - Topic: events
    Partitions:
      - Partition: 0, Leader: 1, Replicas: [1,2], ISR: [1,2]
      - Partition: 1, Leader: 2, Replicas: [2,3], ISR: [2,3]
      - Partition: 2, Leader: 3, Replicas: [3,1], ISR: [3,1]

Phase 2: Metadata Discovery

After the bootstrap connection succeeds, the client learns the full cluster topology:

Broker Addresses in Metadata

The metadata response contains advertised.listeners addresses for each broker. These are NOT necessarily the same as bootstrap server addresses:

# Broker 1 configuration
advertised.listeners=PLAINTEXT://kafka1.internal.example.com:9092

# What clients receive in metadata
Host: kafka1.internal.example.com
Port: 9092

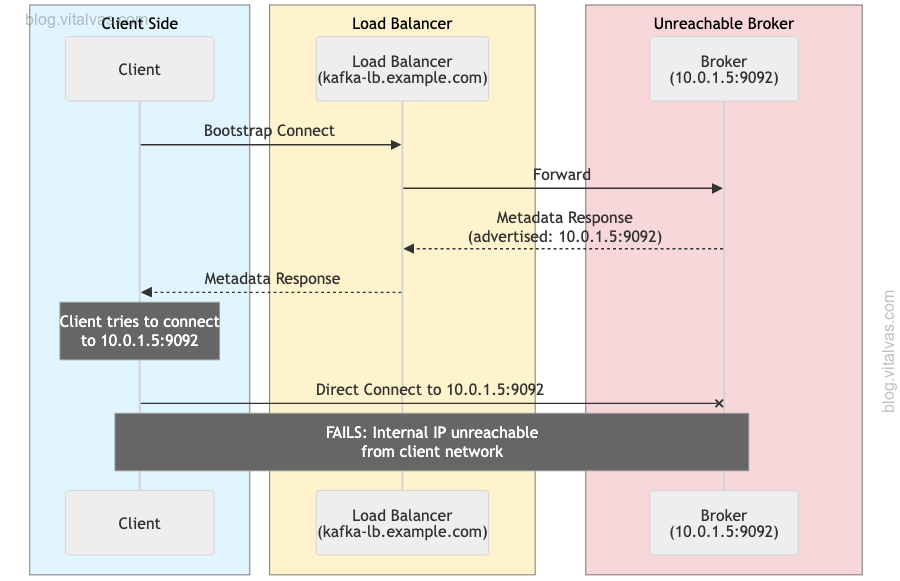

Common Pitfall: Address Mismatch

This is where most connection problems occur:

Scenario: Bootstrap via load balancer, metadata returns internal IPs

Bootstrap:  kafka-lb.example.com:9092  Success
Metadata:   10.0.1.5:9092              Unreachable from client

The client successfully bootstraps but cannot connect to partition leaders because internal IPs aren’t routable from the client’s network.

sequenceDiagram
    participant C as Client
    participant LB as Load Balancer<br/>(kafka-lb.example.com)
    participant B as Broker<br/>(10.0.1.5:9092)

    C->>LB: Bootstrap Connect
    LB->>B: Forward
    B-->>LB: Metadata Response<br/>(advertised: 10.0.1.5:9092)
    LB-->>C: Metadata Response

    Note over C: Client tries to connect<br/>to 10.0.1.5:9092

    C-xB: Direct Connect to 10.0.1.5:9092
    Note over C,B: FAILS: Internal IP unreachable<br/>from client network

    box rgb(225, 245, 255) Client Side
    participant C
    end
    box rgb(255, 243, 205) Load Balancer
    participant LB
    end
    box rgb(248, 215, 218) Unreachable Broker
    participant B
    end

Phase 3: Direct Connections

Partition Leader Connections

After receiving metadata, the client connects directly to partition leaders:

// Client needs to produce to topic "events" partition 0
// Metadata shows partition 0 leader is broker 1 at kafka1.internal.example.com:9092
// Client attempts direct connection to kafka1.internal.example.com:9092

config := sarama.NewConfig()
config.Producer.Return.Successes = true

producer, err := sarama.NewSyncProducer(brokers, config)
if err != nil {
    log.Fatal(err)
}
defer producer.Close()

msg := &sarama.ProducerMessage{
    Topic: "events",
    Value: sarama.StringEncoder("test message"),
}

partition, offset, err := producer.SendMessage(msg)
if err != nil {
    log.Printf("Failed to send message: %v", err)
}

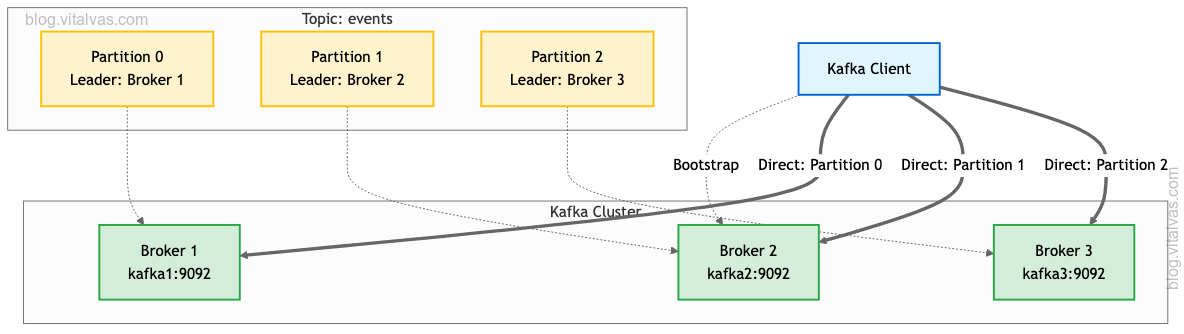

Why Direct Connections?

Kafka requires direct broker connections for several reasons:

1. Performance: Eliminates proxy/load balancer overhead
2. Partition Distribution: Different partitions live on different brokers
3. Scalability: Load balancers become bottlenecks at high throughput
4. Protocol Complexity: Kafka protocol requires stateful connections

graph TB
    C[Kafka Client]

    subgraph "Kafka Cluster"
        K1[Broker 1<br/>kafka1:9092]
        K2[Broker 2<br/>kafka2:9092]
        K3[Broker 3<br/>kafka3:9092]
    end

    subgraph "Topic: events"
        P0[Partition 0<br/>Leader: Broker 1]
        P1[Partition 1<br/>Leader: Broker 2]
        P2[Partition 2<br/>Leader: Broker 3]
    end

    C -.->|Bootstrap| K2
    C ==>|Direct: Partition 0| K1
    C ==>|Direct: Partition 1| K2
    C ==>|Direct: Partition 2| K3

    P0 -.-> K1
    P1 -.-> K2
    P2 -.-> K3

    style C fill:#e1f5ff,stroke:#0366d6,stroke-width:2px
    style K1 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K2 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K3 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style P0 fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style P1 fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style P2 fill:#fff3cd,stroke:#ffc107,stroke-width:2px

Network Configuration Requirements

Listener Configuration

Brokers must advertise addresses reachable by clients:

# Single network (simple case)
listeners=PLAINTEXT://0.0.0.0:9092
advertised.listeners=PLAINTEXT://kafka1.example.com:9092

# Multiple networks (internal + external)
listeners=INTERNAL://0.0.0.0:9092,EXTERNAL://0.0.0.0:9093
advertised.listeners=INTERNAL://kafka1.internal:9092,EXTERNAL://kafka1.example.com:9093
listener.security.protocol.map=INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT

Client Network Requirements

For successful operation, clients must:

1. Reach at least one bootstrap server
2. Resolve all advertised listener hostnames
3. Connect directly to ALL brokers in the cluster
4. Maintain persistent TCP connections

Common Deployment Scenarios

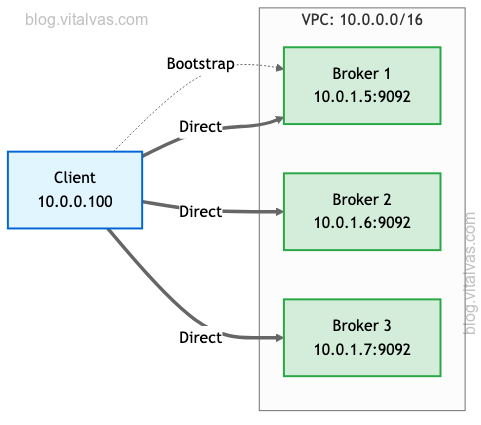

Scenario 1: Same Network

Setup: Clients and brokers on same VPC/network

Client Network:    10.0.0.0/16
Broker Addresses:  10.0.1.5, 10.0.1.6, 10.0.1.7

Bootstrap:  10.0.1.5:9092           OK
Metadata:   10.0.1.5-7:9092         OK
Direct:     10.0.1.5-7:9092         OK

Configuration:

advertised.listeners=PLAINTEXT://10.0.1.5:9092

graph LR
    C[Client<br/>10.0.0.100]

    subgraph "VPC: 10.0.0.0/16"
        K1[Broker 1<br/>10.0.1.5:9092]
        K2[Broker 2<br/>10.0.1.6:9092]
        K3[Broker 3<br/>10.0.1.7:9092]
    end

    C -.->|Bootstrap| K1
    C ==>|Direct| K1
    C ==>|Direct| K2
    C ==>|Direct| K3

    style C fill:#e1f5ff,stroke:#0366d6,stroke-width:2px
    style K1 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K2 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K3 fill:#d4edda,stroke:#28a745,stroke-width:2px

Scenario 2: Across Networks (NAT)

Setup: External clients connecting through NAT/firewall

Internal Network:  10.0.0.0/16
External Network:  Internet

Bootstrap:  kafka.example.com:9092        OK
Metadata:   10.0.1.5:9092                 FAIL (internal IP unreachable)

Solution 1: Use external DNS names (separate IPs)

# Broker 1
advertised.listeners=PLAINTEXT://kafka1.example.com:9092

# Broker 2
advertised.listeners=PLAINTEXT://kafka2.example.com:9092

# Broker 3
advertised.listeners=PLAINTEXT://kafka3.example.com:9092

Requirements:

• DNS resolution: kafka1.example.com → 203.0.113.10
• Port forwarding: 203.0.113.10:9092 → 10.0.1.5:9092
• Firewall rules: Allow TCP 9092 from client IPs

Solution 2: Use single IP with different ports

# Broker 1
advertised.listeners=PLAINTEXT://kafka.example.com:9092

# Broker 2
advertised.listeners=PLAINTEXT://kafka.example.com:9093

# Broker 3
advertised.listeners=PLAINTEXT://kafka.example.com:9094

Requirements:

• DNS resolution: kafka.example.com → 203.0.113.10
• Port forwarding:
  • 203.0.113.10:9092 → 10.0.1.5:9092
  • 203.0.113.10:9093 → 10.0.1.6:9092
  • 203.0.113.10:9094 → 10.0.1.7:9092
• Firewall rules: Allow TCP 9092-9094 from client IPs

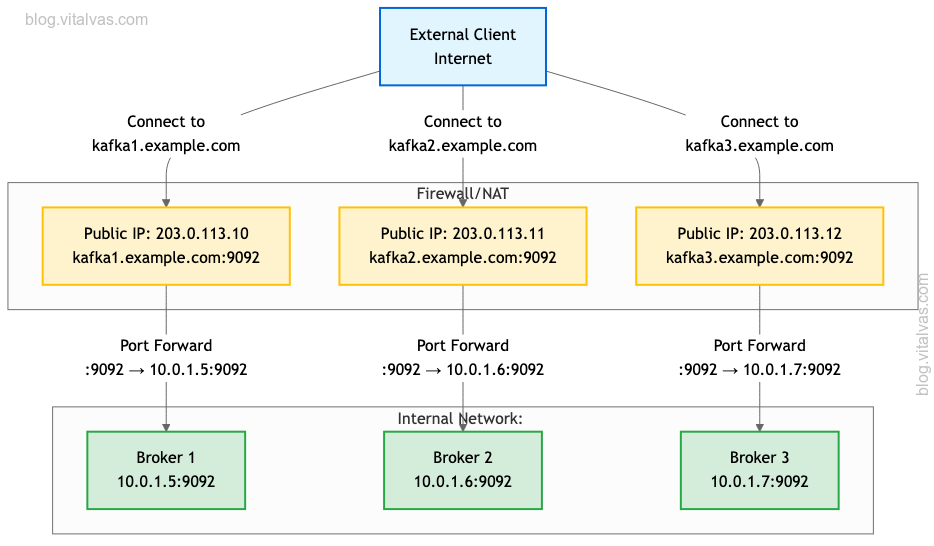

Solution 1 Diagram: Separate DNS names and IPs

graph TB
    C[External Client<br/>Internet]

    subgraph "Firewall/NAT"
        FW1[Public IP: 203.0.113.10<br/>kafka1.example.com:9092]
        FW2[Public IP: 203.0.113.11<br/>kafka2.example.com:9092]
        FW3[Public IP: 203.0.113.12<br/>kafka3.example.com:9092]
    end

    subgraph "Internal Network: 10.0.0.0/16"
        K1[Broker 1<br/>10.0.1.5:9092]
        K2[Broker 2<br/>10.0.1.6:9092]
        K3[Broker 3<br/>10.0.1.7:9092]
    end

    C -->|Connect to<br/>kafka1.example.com| FW1
    C -->|Connect to<br/>kafka2.example.com| FW2
    C -->|Connect to<br/>kafka3.example.com| FW3

    FW1 -->|Port Forward<br/>:9092 → 10.0.1.5:9092| K1
    FW2 -->|Port Forward<br/>:9092 → 10.0.1.6:9092| K2
    FW3 -->|Port Forward<br/>:9092 → 10.0.1.7:9092| K3

    style C fill:#e1f5ff,stroke:#0366d6,stroke-width:2px
    style FW1 fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style FW2 fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style FW3 fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style K1 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K2 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K3 fill:#d4edda,stroke:#28a745,stroke-width:2px

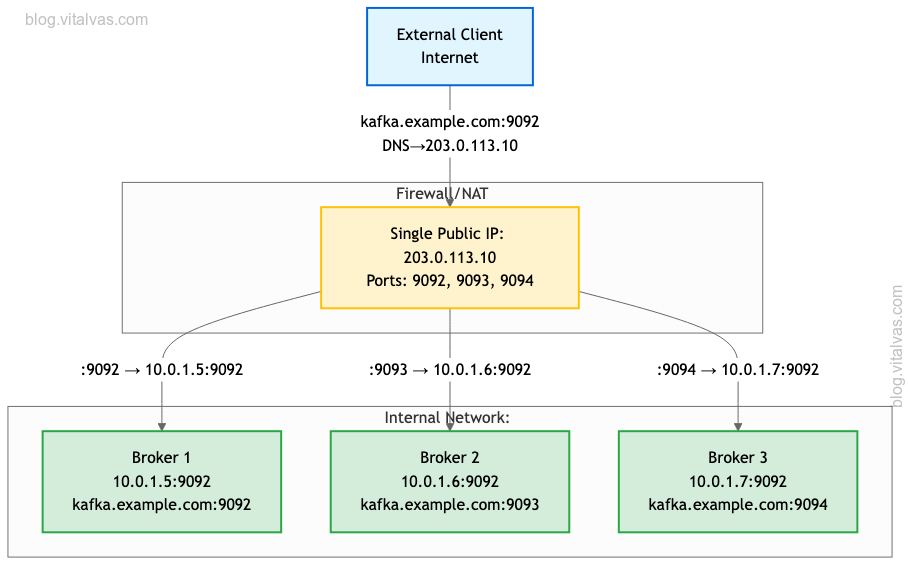

Solution 2 Diagram: Single IP with port mapping

graph TB
    C[External Client<br/>Internet]

    subgraph "Firewall/NAT"
        FW[Single Public IP: 203.0.113.10<br/>Ports: 9092, 9093, 9094]
    end

    subgraph "Internal Network: 10.0.0.0/16"
        K1[Broker 1<br/>10.0.1.5:9092<br/>kafka.example.com:9092]
        K2[Broker 2<br/>10.0.1.6:9092<br/>kafka.example.com:9093]
        K3[Broker 3<br/>10.0.1.7:9092<br/>kafka.example.com:9094]
    end

    C -->|kafka.example.com:9092<br/>DNS→203.0.113.10| FW
    FW -->|:9092 → 10.0.1.5:9092| K1
    FW -->|:9093 → 10.0.1.6:9092| K2
    FW -->|:9094 → 10.0.1.7:9092| K3

    style C fill:#e1f5ff,stroke:#0366d6,stroke-width:2px
    style FW fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style K1 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K2 fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K3 fill:#d4edda,stroke:#28a745,stroke-width:2px

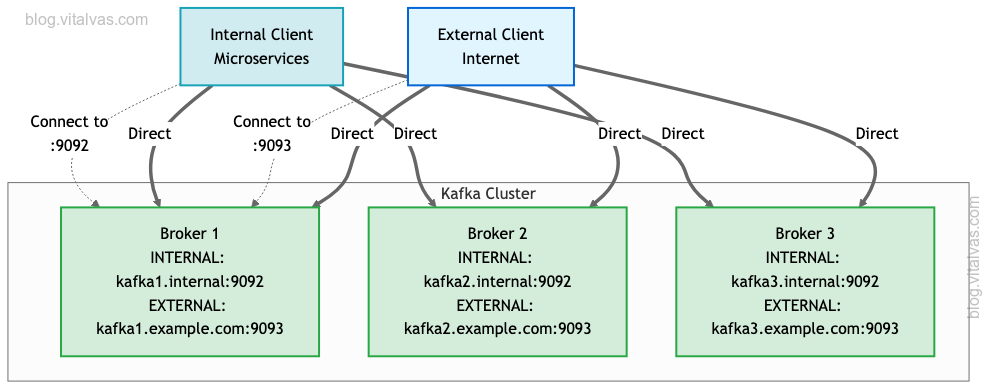

Scenario 3: Multiple Client Networks

Setup: Internal microservices + external applications

listeners=INTERNAL://0.0.0.0:9092,EXTERNAL://0.0.0.0:9093
advertised.listeners=INTERNAL://kafka1.internal:9092,EXTERNAL://kafka1.example.com:9093
listener.security.protocol.map=INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT
inter.broker.listener.name=INTERNAL

Client configuration:

// Internal client
brokers := []string{"kafka1.internal:9092"}

// External client
brokers := []string{"kafka1.example.com:9093"}

graph TB
    IC[Internal Client<br/>Microservices]
    EC[External Client<br/>Internet]

    subgraph "Kafka Cluster"
        K1I[Broker 1<br/>INTERNAL: kafka1.internal:9092<br/>EXTERNAL: kafka1.example.com:9093]
        K2I[Broker 2<br/>INTERNAL: kafka2.internal:9092<br/>EXTERNAL: kafka2.example.com:9093]
        K3I[Broker 3<br/>INTERNAL: kafka3.internal:9092<br/>EXTERNAL: kafka3.example.com:9093]
    end

    IC -.->|Connect to<br/>:9092| K1I
    IC ==>|Direct| K1I
    IC ==>|Direct| K2I
    IC ==>|Direct| K3I

    EC -.->|Connect to<br/>:9093| K1I
    EC ==>|Direct| K1I
    EC ==>|Direct| K2I
    EC ==>|Direct| K3I

    style IC fill:#d1ecf1,stroke:#17a2b8,stroke-width:2px
    style EC fill:#e1f5ff,stroke:#0366d6,stroke-width:2px
    style K1I fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K2I fill:#d4edda,stroke:#28a745,stroke-width:2px
    style K3I fill:#d4edda,stroke:#28a745,stroke-width:2px

Troubleshooting Connection Issues

Diagnostic Steps

1. Verify Bootstrap Connection

# Test TCP connectivity
nc -zv kafka1.example.com 9092

# Test with kafkacat
kafkacat -b kafka1.example.com:9092 -L

2. Check Metadata Response

# Full cluster metadata
kafkacat -b kafka1.example.com:9092 -L

# Output shows advertised addresses:
# broker 1 at kafka1.internal.example.com:9092
# broker 2 at kafka2.internal.example.com:9092

3. Verify Direct Connectivity

# Test connection to each advertised address
nc -zv kafka1.internal.example.com 9092
nc -zv kafka2.internal.example.com 9092
nc -zv kafka3.internal.example.com 9092

4. DNS Resolution

# Verify DNS resolves correctly from client network
nslookup kafka1.internal.example.com
dig kafka1.internal.example.com

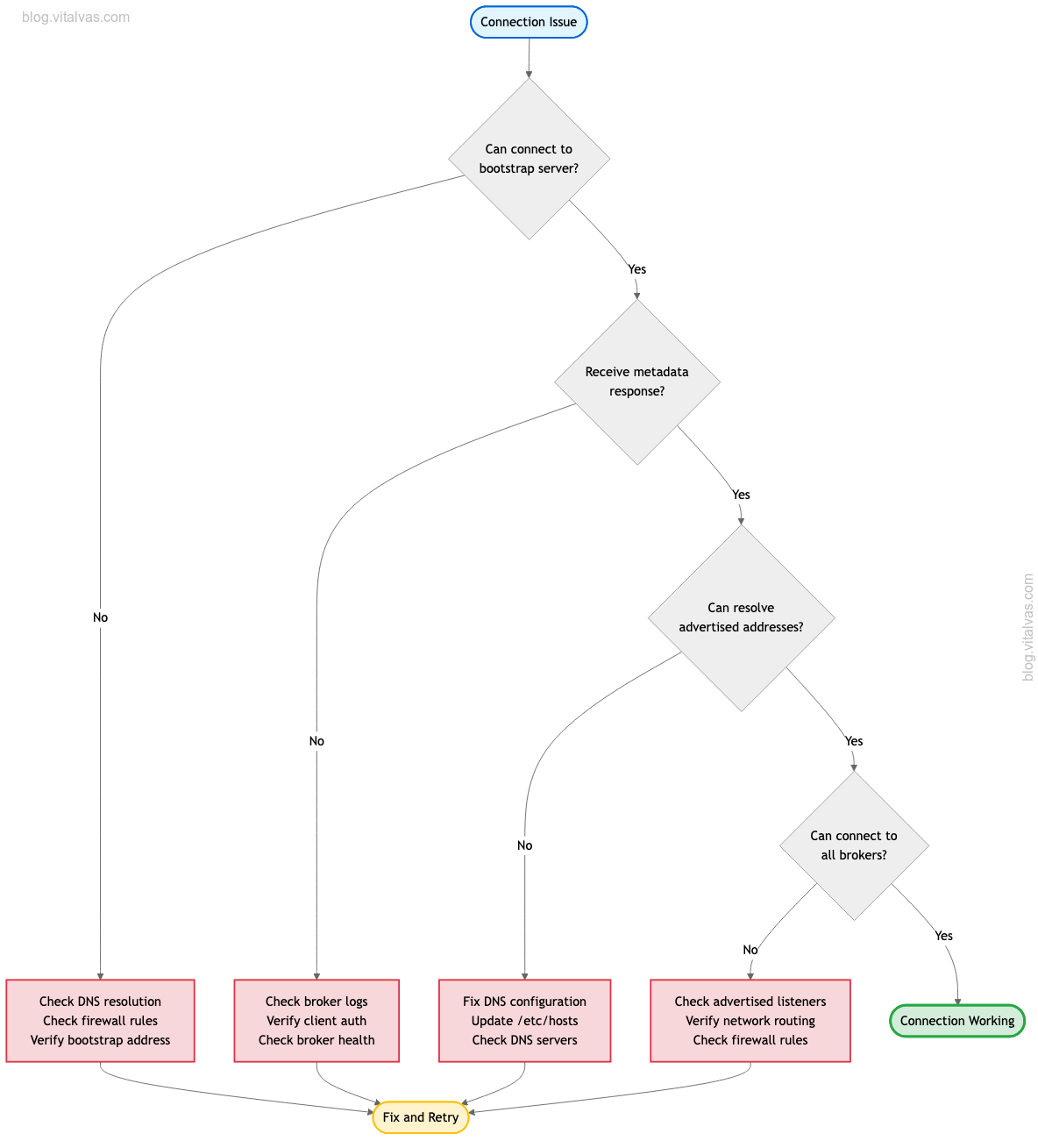

flowchart TD
    Start([Connection Issue])

    Start --> Q1{Can connect to<br/>bootstrap server?}
    Q1 -->|No| F1[Check DNS resolution<br/>Check firewall rules<br/>Verify bootstrap address]
    Q1 -->|Yes| Q2{Receive metadata<br/>response?}

    Q2 -->|No| F2[Check broker logs<br/>Verify client auth<br/>Check broker health]
    Q2 -->|Yes| Q3{Can resolve<br/>advertised addresses?}

    Q3 -->|No| F3[Fix DNS configuration<br/>Update /etc/hosts<br/>Check DNS servers]
    Q3 -->|Yes| Q4{Can connect to<br/>all brokers?}

    Q4 -->|No| F4[Check advertised listeners<br/>Verify network routing<br/>Check firewall rules]
    Q4 -->|Yes| Success([Connection Working])

    F1 --> End([Fix and Retry])
    F2 --> End
    F3 --> End
    F4 --> End

    style Start fill:#e1f5ff,stroke:#0366d6,stroke-width:2px
    style Success fill:#d4edda,stroke:#28a745,stroke-width:3px
    style End fill:#fff3cd,stroke:#ffc107,stroke-width:2px
    style F1 fill:#f8d7da,stroke:#dc3545,stroke-width:2px
    style F2 fill:#f8d7da,stroke:#dc3545,stroke-width:2px
    style F3 fill:#f8d7da,stroke:#dc3545,stroke-width:2px
    style F4 fill:#f8d7da,stroke:#dc3545,stroke-width:2px

Testing Connection in Go

package main

import (
    "fmt"
    "log"

    "github.com/IBM/sarama"
)

func testKafkaConnection(brokers []string) error {
    config := sarama.NewConfig()
    config.Version = sarama.V3_5_0_0
    config.Net.DialTimeout = 10 * time.Second
    config.Net.ReadTimeout = 10 * time.Second
    config.Net.WriteTimeout = 10 * time.Second

    // Step 1: Create client (bootstrap connection)
    client, err := sarama.NewClient(brokers, config)
    if err != nil {
        return fmt.Errorf("bootstrap connection failed: %w", err)
    }
    defer client.Close()

    // Step 2: Verify we can reach all brokers
    brokerList := client.Brokers()
    fmt.Printf("Discovered %d brokers:\n", len(brokerList))

    for _, broker := range brokerList {
        addr := broker.Addr()
        fmt.Printf("  Broker %d: %s\n", broker.ID(), addr)

        err := broker.Open(config)
        if err != nil {
            return fmt.Errorf("cannot connect to broker %d at %s: %w",
                broker.ID(), addr, err)
        }

        connected, err := broker.Connected()
        if err != nil || !connected {
            return fmt.Errorf("broker %d at %s not connected",
                broker.ID(), addr)
        }

        broker.Close()
        fmt.Printf("  Successfully connected to %s\n", addr)
    }

    // Step 3: Test topic metadata
    topics, err := client.Topics()
    if err != nil {
        return fmt.Errorf("failed to fetch topics: %w", err)
    }

    fmt.Printf("\nDiscovered %d topics\n", len(topics))

    return nil
}

func main() {
    brokers := []string{
        "kafka1.example.com:9092",
        "kafka2.example.com:9092",
        "kafka3.example.com:9092",
    }

    if err := testKafkaConnection(brokers); err != nil {
        log.Fatal(err)
    }

    fmt.Println("\nAll connectivity tests passed")
}

Best Practices

Bootstrap Server Configuration

1. Use Multiple Bootstrap Servers: Provide 2-3 for redundancy
2. Use Stable Addresses: DNS names preferred over IPs
3. Test from Client Network: Verify reachability before deployment

Advertised Listener Configuration

1. Use Client-Reachable Addresses: Test DNS resolution from client networks
2. Avoid Internal IPs: Use DNS names that resolve correctly from all client locations
3. Document Network Requirements: Maintain list of required connectivity
4. Use Multiple Listeners: Separate internal/external traffic when needed

Monitoring and Maintenance

1. Monitor Connection Metrics: Track connection failures and timeouts
2. Log Bootstrap Attempts: Debug connectivity issues
3. Validate Configuration Changes: Test before deploying
4. Keep Client Libraries Updated: Latest versions have better error messages

Conclusion

Kafka’s bootstrap connection process is a two-phase mechanism:

1. Bootstrap Phase: Connect to any listed server for initial contact
2. Metadata Phase: Discover full cluster topology and advertised addresses
3. Direct Phase: Connect directly to partition leaders

Critical Requirements:

• Clients must reach ALL brokers, not just bootstrap servers
• Advertised listeners must be resolvable and routable from client networks
• Direct TCP connections required (load balancers only for bootstrap)

Common Mistakes:

• Using internal IPs in advertised.listeners for external clients
• Assuming load balancer handles all connections
• Not testing connectivity to all brokers before deployment
• Mixing network contexts without multiple listener configuration

Understanding this connection model is essential for successful Kafka deployments across diverse network topologies.
